The Fergus model of exoplanet detectionΒΆ

Besides being generally awesome, this example also demonstrates how you can color the nodes and add arbitrary labels to the figure.

import daft

# Colors.
p_color = {"ec": "#46a546"}
s_color = {"ec": "#f89406"}

pgm = daft.PGM()

n = daft.Node("phi", r"$\phi$", 1, 3, plot_params=s_color)
n.va = "baseline"
pgm.add_node(n)
pgm.add_node("speckle_coeff", r"$z_i$", 2, 3, plot_params=s_color)
pgm.add_node("speckle_img", r"$x_i$", 2, 2, plot_params=s_color)

pgm.add_node("spec", r"$s$", 4, 3, plot_params=p_color)
pgm.add_node("shape", r"$g$", 4, 2, plot_params=p_color)
pgm.add_node("planet_pos", r"$\mu_i$", 3, 3, plot_params=p_color)
pgm.add_node("planet_img", r"$p_i$", 3, 2, plot_params=p_color)

pgm.add_node("pixels", r"$y_i ^j$", 2.5, 1, observed=True)

# Edges.
pgm.add_edge("phi", "speckle_coeff")
pgm.add_edge("speckle_coeff", "speckle_img")
pgm.add_edge("speckle_img", "pixels")

pgm.add_edge("spec", "planet_img")
pgm.add_edge("shape", "planet_img")
pgm.add_edge("planet_pos", "planet_img")
pgm.add_edge("planet_img", "pixels")

# And a plate.
pgm.add_plate([1.5, 0.2, 2, 3.2], label=r"exposure $i$", shift=-0.1)
pgm.add_plate([2, 0.5, 1, 1], label=r"pixel $j$", shift=-0.1)

# Render and save.
pgm.render()
<Axes:>

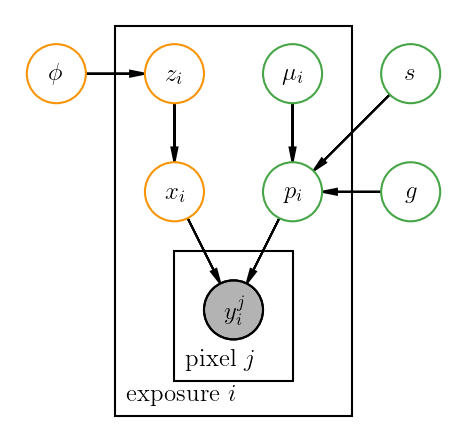

../../_images/exoplanets_2_1.png
